HIDRALMAC DOUBLE SIDED PRESSThe HIDRALMAC hydraulic double sided presses (also known as H-presses) are produced from premium engineering steel. Specially trained welders produce the machine body and in addition bolt it down partially. The construction is designed with 100% stress reserves included. The ram is guided by adjustable prisms. The linear guidance of the ram is manufactured with bronze slide sleeves. The cylinders of the double-sided presses are induction hardened and chrome trimmed.We deliver all machines with a maintenance balcony and an access ladder, unless our customers have any other wishes.Full hydraulic equipment is delivered by BOSCH/REXROTH, control and electric components delivered by SIEMENS and we get all of our safety equipment from SICK.Basic equipment of the ...
档案编号:
施工进度:

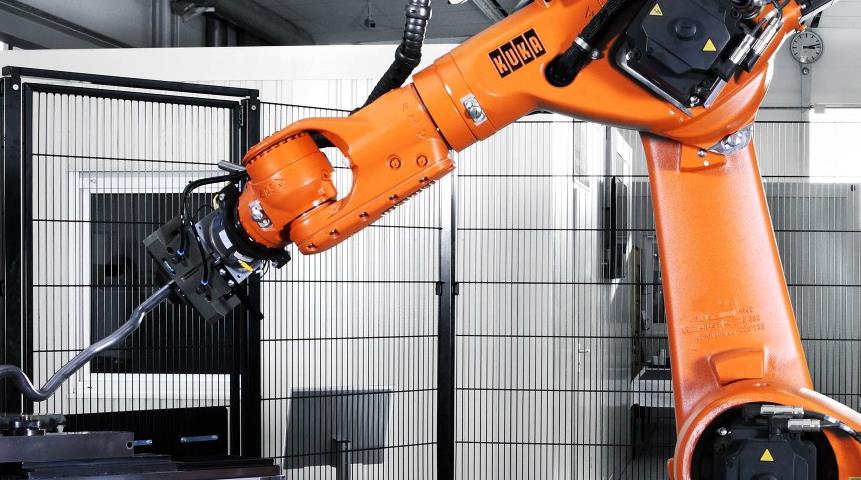

KR 60这个六轴机器人几乎可以在每个行业找到。 KR 60是非常灵活和多用途的 - 不仅汽车行业受益于此。 这个中等负载能力的机器人适用于具有高循环时间的生产中。 KR 60是一个多功能的运动艺术家,拥有无与伦比的承重范围。 它有不同的变体,例如作为铸造设计或作为控制台机器人 。KR 60还有可选的伸展臂,这使得它成为受欢迎的多功能机器人。 行业多样性KR 60因其多功能性而成为众多行业的受欢迎的多功能机器人。 KR 60有各种不同版本应付各种各样的任务。 这不仅仅是用于汽车行业。 优化过程KR 60发动机和齿轮箱完美匹配,确保在循环时间和精度方面的最高性能。 由于其高刚度,它补偿了出现的过程力(process forces)。 规划安全由于其坚固的设计,KR 60在长时间内可靠运行并且具有最大的可用性。 它提供低维护要求和高规划可靠性。 KR 60也可以精确离线编程。
档案编号:
施工进度:
KR 30KR 30 用最短的周期时间实现最高的作业品质 – 同时具有无以伦比的重复精度。因此,这款六轴机器人特别适合用于部件搬运、部件测量或激光应用等。 搬运、焊接、粘贴、铸造甚至自动缝纫 – 我们的 KR 30 几乎无所不能。凭借 30 kg 的负载能力和最大 3102 毫米的作用范围以及灵活的安装位置(地面、天花板、墙壁或倾斜位置),这款六轴机器人是自动化领域名副其实的专家。多样化的规格,例如高精度机器人、架装版本或者铸造版本,让越来越多的行业能够从 KR 30 的优势中获益:精确、快速且高效。 坚固且可靠这款机器人的结构采用了耐久性设计。即使在最大的负荷下,依然可以长期信任 KR 30。最大的可用性也确保了规划可靠性。 灵活多变KR 30 可以灵活匹配各种应用需求。我们的产品系列为您提供最全面的选择以及丰富的选配件和特殊规格。机器人可以安装于天花板、墙壁、地面且不受角度限制。 快速精准利用有限元法 (FEM) 优化的设计使 KR 30 可以达到极高的刚度,从而平衡过程作用力。这也是实现最高精确度和最短作业时间的前提条件。电机和传动系统均为最高性能而设计。此外还可以轻松、精确地为 KR 30 进行离线编程。
档案编号:
施工进度:

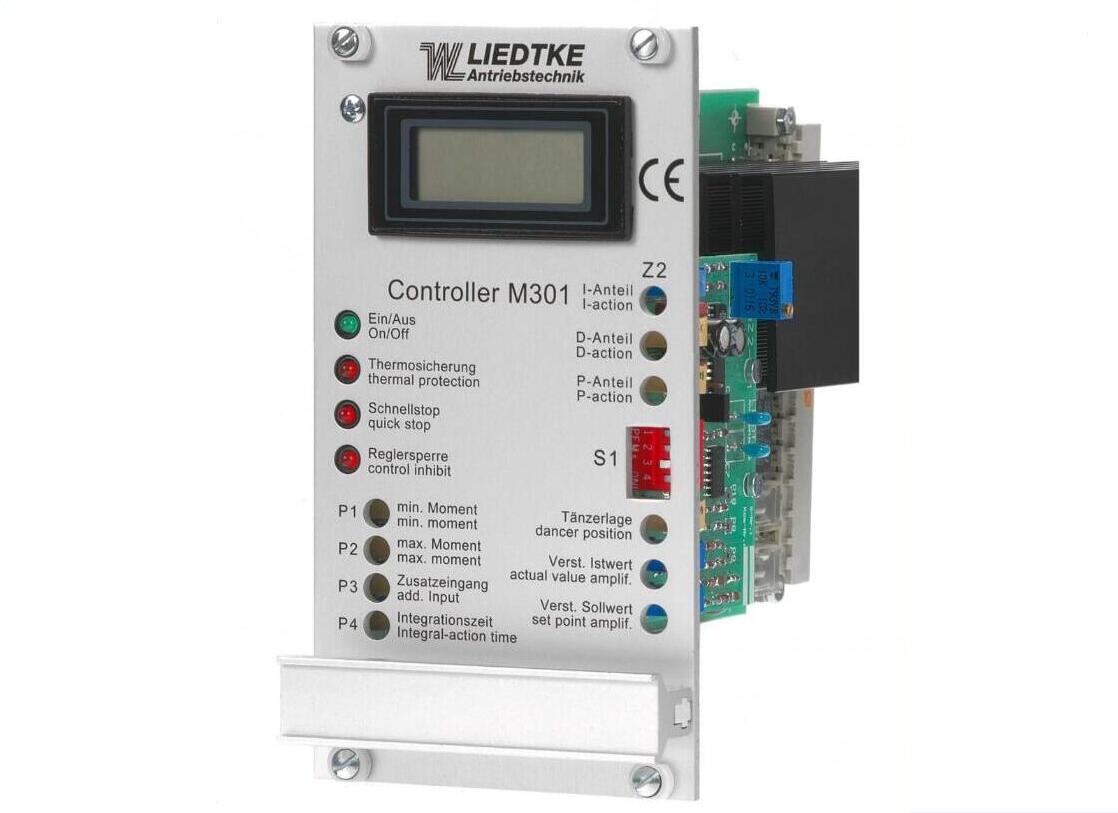

Constant current controller for magnetic particle clutches and brakes with optional PID-controller Z2 / Z4Magnetic particle clutches / brakes, fed by the LIEDTKE controller work independently of temperature and deliver a constant torque.The output current is adjustable in a wide range by the constant current control, independent of resistance by the connected load. ApplicationsOptional PID-Controller Z2/Z4 for:Unwind brakes / windingTorque controlTorque limitingSpeed controlClutch processStart controlTension force controlBrake controltorque measuringDancer controlSpecification for all controllers:net potential-freecontrol inhibitset-point voltage 0-10 VDCset-point integrator ± adjustableadditional reference input 0-10 VDCmin. / max. current limit adjustablequick stop functio...
档案编号:
施工进度:

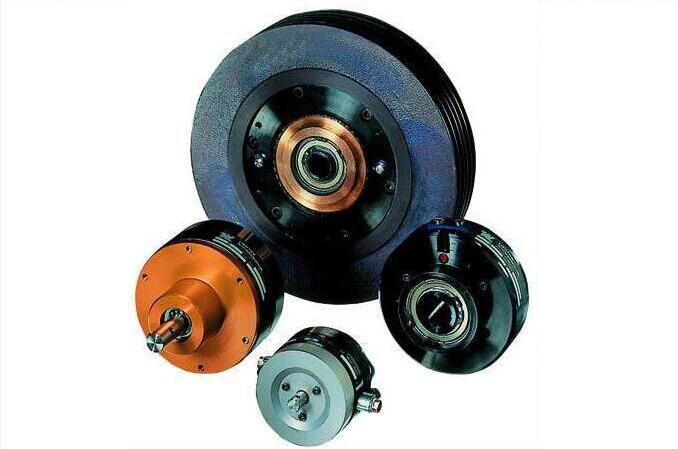

The magnetic particle clutch respectively brake achieves at a low driving power a high torque being independent of slip speed. It distinguishes itself by a simple structure, low weight and requires little room.This advantage makes it possible for the clutch resp. brake to be employed in the solution of many technical problems. Appropriate regulation and control devices - as for ex. our LIEDTKE Controller - are needed for the different applications. Application:unwinding brakes/windingtorque controlstorque limitationsspeed controlsclutch proceedingsstart controlsThe characteristics of the magnetic particle clutches and brakes are a great advantage in control engineering. By changing the intensity of the exciting current, the torque to be transferred can be adjusted within the...
