To complete the large manifold system. The pump groups are available as UK variants for unmixed heating circuits and as MK variants for mixed heating circuits. There are different dimensions from DN 25 - DN 32 and a large selection of pumps is also available. The assemblies are pre-assembled, tested and fully sealed, with or without recirculation pump (EL 180 mm) with connection cable; two 2-way ball valves (with manually adjustable gravity brake on return side); two contact thermometers integrated into the ball valve handle; a pump ball valve with meibes flange; EPP insulation.
档案编号:
施工进度:

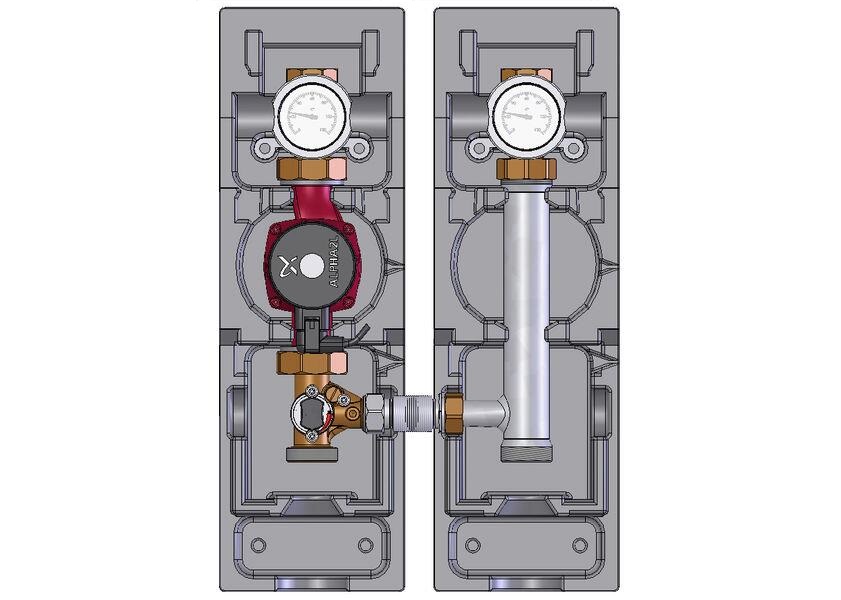

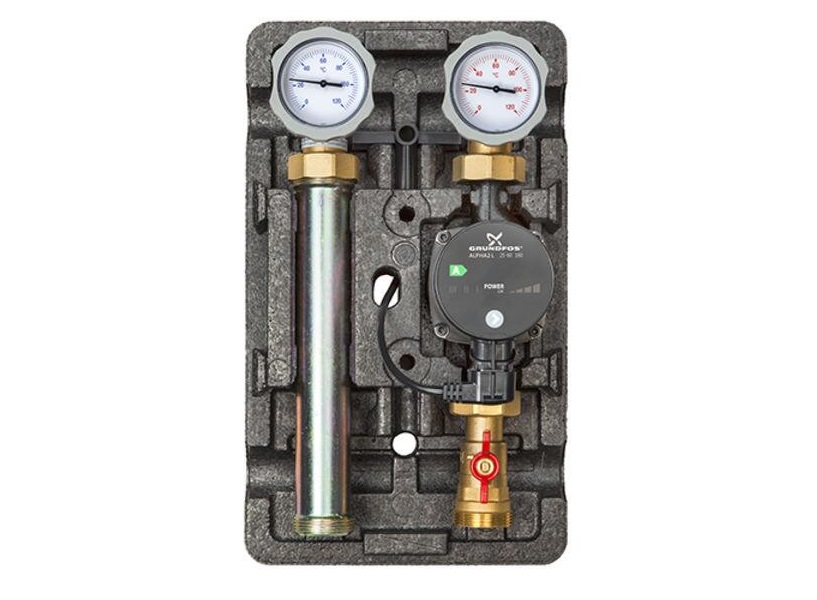

Product description The meibes pump group for a direct heating circuit is available in different models in DN 20, 25, 32. The groups are suitable for high-efficiency pumps. Available as variants with or without recirculation pump (EL 180 mm, with connection cable), completely pre-assembled, sealed and tested. The EPP insulation consists of upper and lower parts for easier and more rapid installation. Additional components: Two 2-way ball valves, (one with manually adjustable gravity brake), two contact thermometers, pump ball valves, return pipes and wall brackets.
